![Cable Gland Dimension](images/products/hexagonal-cable-gland-fig.jpg)

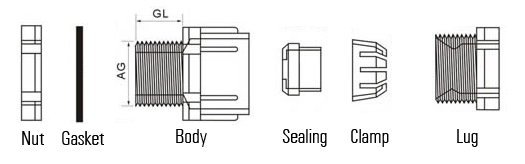

Structure![Cable Gland Dimension](images/products/hexagonal-cable-gland-fig.jpg)
![Cable Gland Dimension](images/products/hexagonal-cable-gland-fig.jpg)
![Cable Gland Hexagonal Cable Gland](images/products/hexagonal-cable-gland.jpg)
![Cable Gland Hexagonal Cable Gland](images/products/hexagonal-cable-gland-black.jpg)
Material: | Nylon PA66 |
Sealing: | NBR |
Thread: | PG, M |
Temperature Range: | -40°C to +100°C |
Color: | Black RAL9005 and Grey RAL7030 |
Protection Class: | IP 68 |
AG (PG) |
AG (mm) |
GL (mm) |
G-N7 | 5-7 | 8 |
G-N9 | 6-8 | 8 |
G-N11 | 8-10 | 8 |
G-N13.5 | 10-12 | 9 |
G-N16 | 12-14 | 10 |
G-N21 | 15-17 | 11 |
G-N29 | 24-26 | 11 |
G-N36 | 31-33 | 13 |
G-N42 | 39-41 | 13 |
G-N48 | 45-47 | 14 |
AG (M) |
AG (mm) |
GL (mm) |
NM16X1.5 | 5-10 | 12 |
NM20X1.5 | 6-13 | 13 |
NM25X1.5 | 10-18 | 13 |
NM32X1.5 | 16-22 | 15 |
NM40X1.5 | 20-27 | 21 |
NM50X1.5 | 30-41 | 23 |
NM63X1.5 | 40-53 | 25 |
